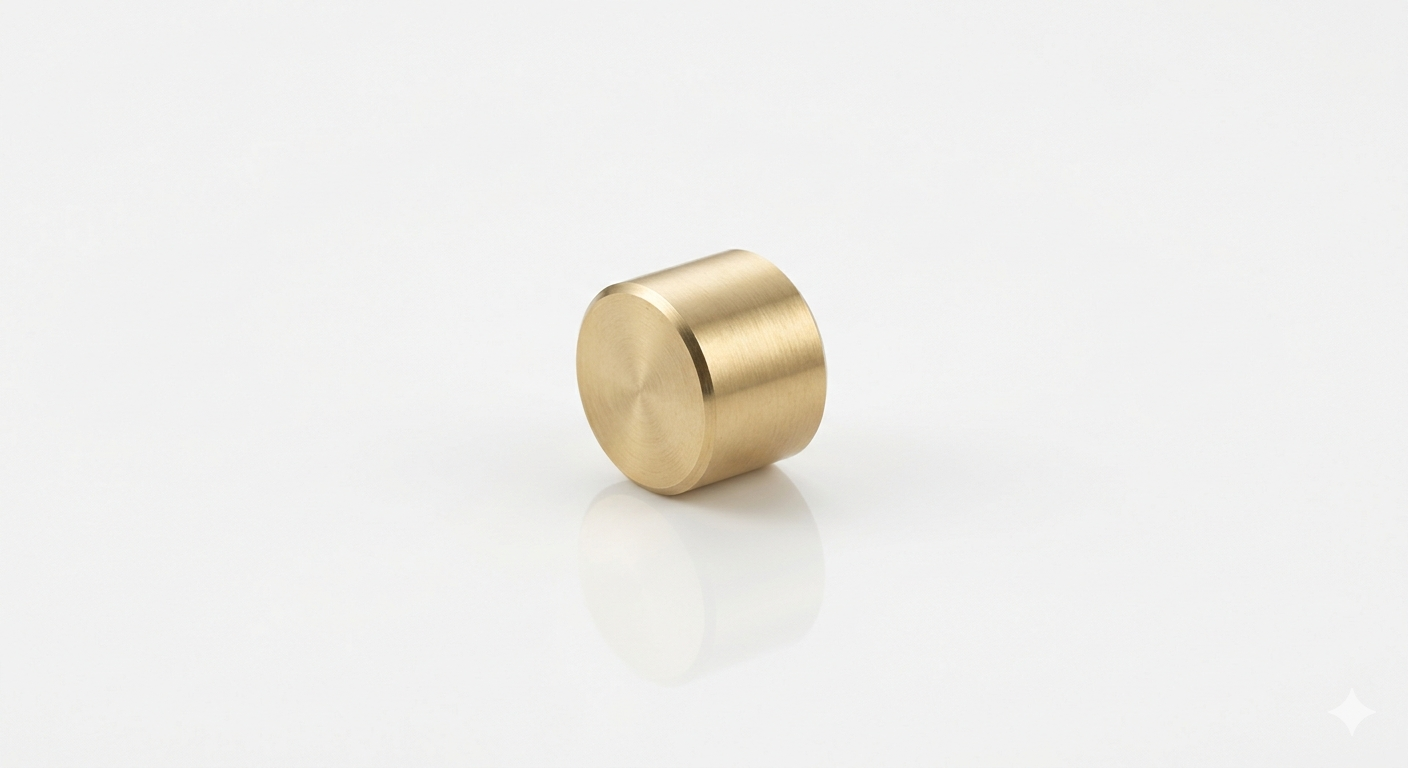

SpinGuard Headshell Weight

Description

The SpinGuard Headshell Weight is a precision brass counterweight that attaches to the rear of any standard ½-inch headshell, adding exactly 4 g of mass to tune the effective mass of the tonearm-cartridge system. Tonearm resonance frequency — the frequency at which the tonearm and cartridge suspension interact in a resonant system — should fall between 8 and 12 Hz for optimal tracking. With very lightweight cartridges on medium-mass tonearms, the resonance can fall above 12 Hz, causing mistracking on inner grooves and warp-excited instability.

The Physics of Tonearm Resonance Tuning

Tonearm resonance frequency is determined by the combined effective mass of the tonearm plus headshell plus cartridge, and the compliance of the cartridge stylus suspension. The relationship follows a simple inverse square root law — doubling the effective mass lowers the resonance frequency by a factor of 1.4. The SpinGuard Weight provides a controlled, reversible way to shift this frequency:

– Adds exactly 4 g of brass mass at the headshell rear — the lowest-mass position for maximum resonance effect
– Polished nickel finish — corrosion resistant, low-friction surface on the threaded collar interface
– Threaded collar attachment — no adhesive, no modification to headshell required, fully reversible
– Compatible with all headshells with a standard M2.5 rear mounting thread
– Installation requires no tools — hand-tighten the collar, rebalance the tonearm counterweight

Calculating Whether You Need This Weight

To calculate the current resonance frequency of your tonearm-cartridge combination, use the formula:

F = 1000 / (2π × √(M × C))

Where M = effective tonearm mass in grams and C = cartridge compliance in μm/mN. Calculators are freely available online. A result above 12 Hz indicates the SpinGuard Weight will bring the system into the optimal range. A result below 8 Hz indicates a low-compliance cartridge that may need a lighter headshell instead. Backed by a two-year warranty.
